A simple STEREO amplifier, with minimal external components. It use one only opamp., that is capable to give output power 2X5W in the 4 ohms, with distortion 0.5%. The capacitor C5, it should Its placed near in pins the IC1. IC1 should be placed on heatsink.

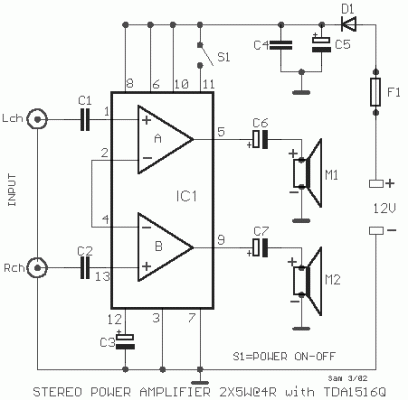

Circuit diagram
Part List
- C1-2=220nF 100V MKT
- C3=100uF 25V
- C4=100nF 100V MKT
- C5=2200uF 25V
- C6-7=1000uF 40V
- D1=1N5408
- IC1=TDA1516Q
- F1=2A Fuse
- M1-2=Loudspeaker 10w/4ohm
