This high power audio amplifier will give you top class quality for loudspeaker 4 – 8 ohm. Frequency range 20-20000Hz, Voltage 24-36V with current max 5A. You need heatsink to keep the transistor from overheating.
Itu use dual polarity power supply to work, then you may use this power supply to supply the circuit.

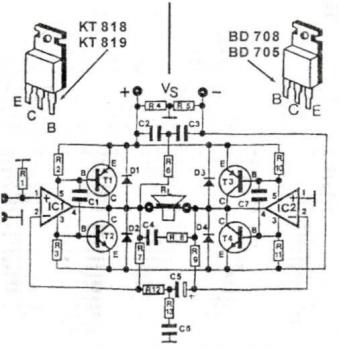

Schematic diagram:

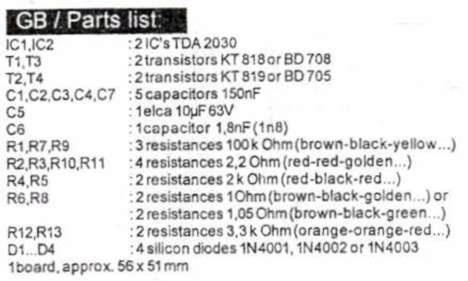

Component part list:
Description:

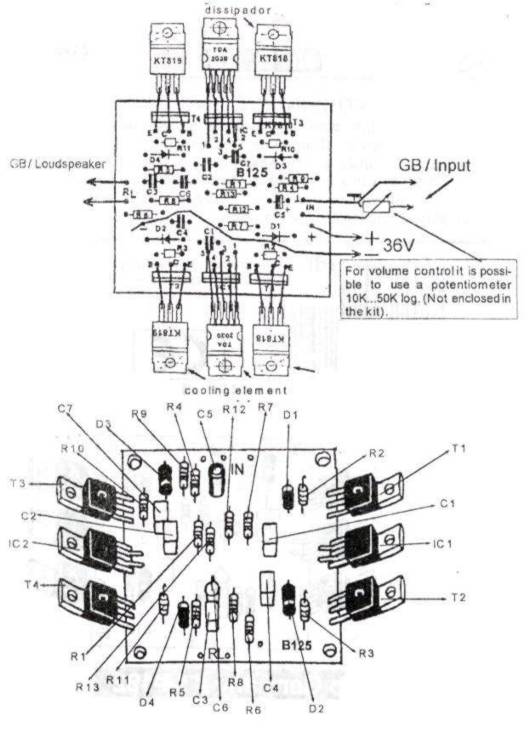

Top PCB Layout:

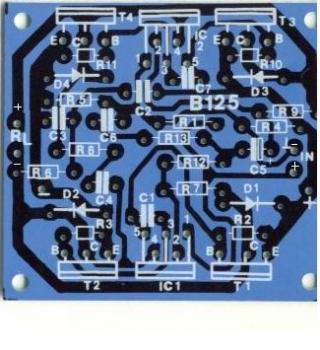

Bottom PCB Layout:
