Audio
200W audio amplifier
200W audio amplifier

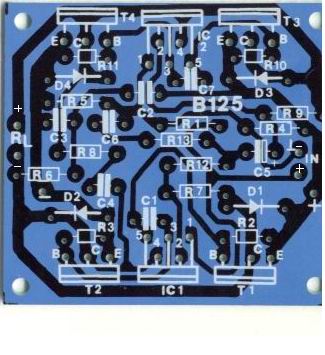

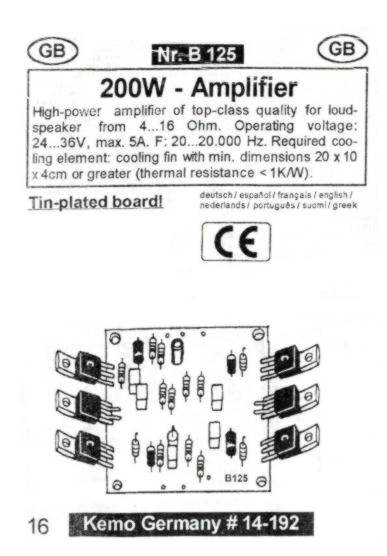

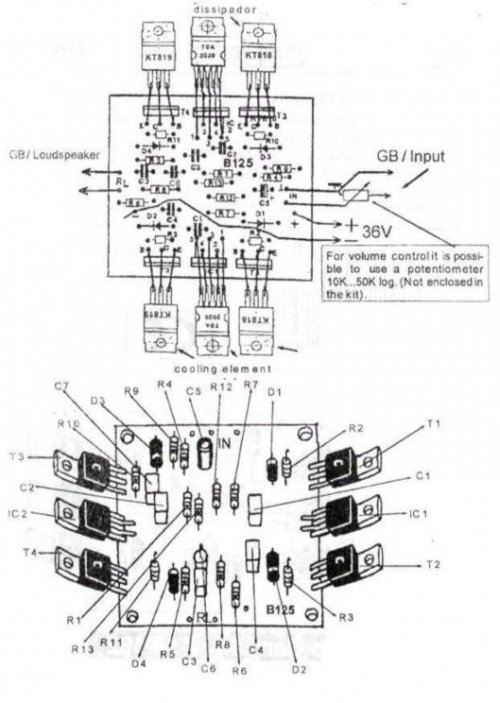

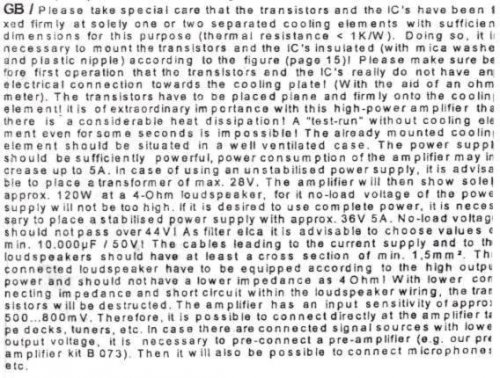

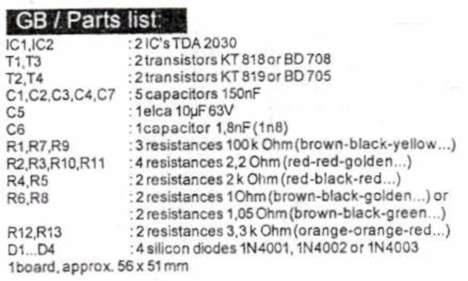

text about project is on images!
power supply circuit diagram for download
power.zip
Written by:
Super User
Published: 31 March 2016
Created: 31 March 2016
Last Updated: 02 February 2023
Previous article: 2000W Class AB Power Amplifier
2000W Class AB Power Amplifier
Next article: 20W Bridge Amplifier using TDA7240A
20W Bridge Amplifier using TDA7240A
